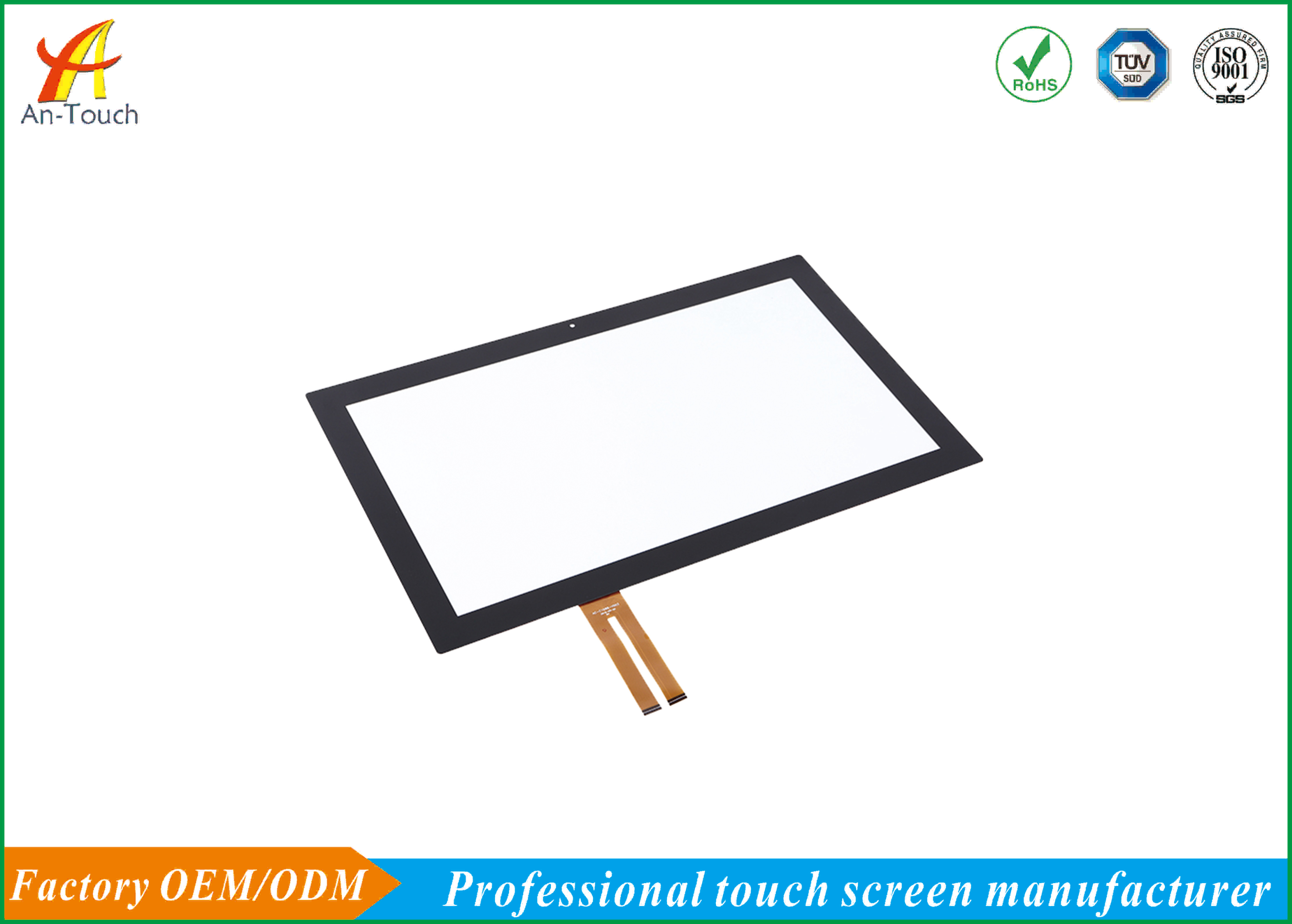

Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1062-21.5 |
|
Detail Information |
|||
| Name: | Capacitive Touch Panel | Shape: | Square |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 532.5*325.6mm |
| Module View Area: | 475.5*266.6mm | Operating System: | XP Win7、8 Android Linux |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description
Small Custom Capacitive Touch Panel / Square Monitor Pc Touch Screen
Custom Capacitive Touch Panel Advantages
- Annual capacity 3million capacitive touchscreens
- Highest resolution, sensitive and fast response
- Support zoom in/out, display rotation
- New models can be customized in 2week
- All items meet ROHS standards
- Operable in various light conditions, indoor and outdoor
Custom Capacitive Touch Panel Main features
*Flush surface
*Water-proof and dust-proof
*Small touch pressure, quick response, accurate touch, high transmittance
*High-definition, waterproof, anti-fog, long service life
Custom Capacitive Touch Panel details
| Item | Specification |
| Part Number | AC-C1062-21.5 |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 532.5*325.6mm |
| View Area | 475.5*266.6mm |
| IC Controller | ILITEK 2510/WD8752 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.0±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
♦response speed fast, smooth touch
♦accuracy up to 99% proficient in writing, no break no drift
♦any point can withstand more than 50 million times touch
♦long life, low maintenance costs
♦ intelligent automatic calibration, use forinternal / external variety of environments
♦Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability
Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
