Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1075-27.0 |
|
Detail Information |
|||
| Name: | Usb Powered Touch Screen | Feature: | Durable |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 656.02*394.02mm |
| Module View Area: | 598.6*337.14mm | IC Controller: | ILITEK 2312 |
| Operating System: | XP Win7、8 Android Linux | Interface Mode: | USB/IIC/RS232 |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description

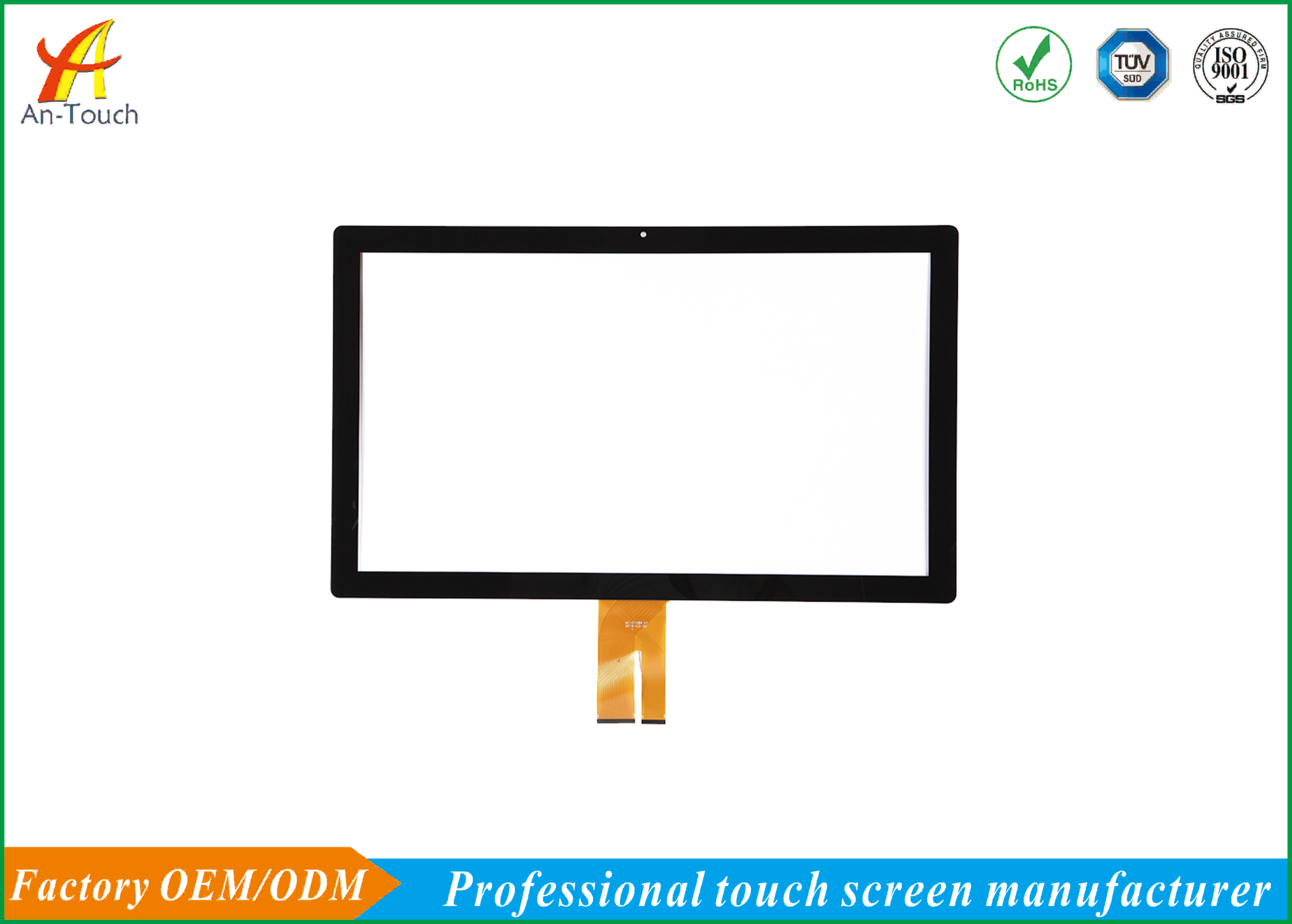

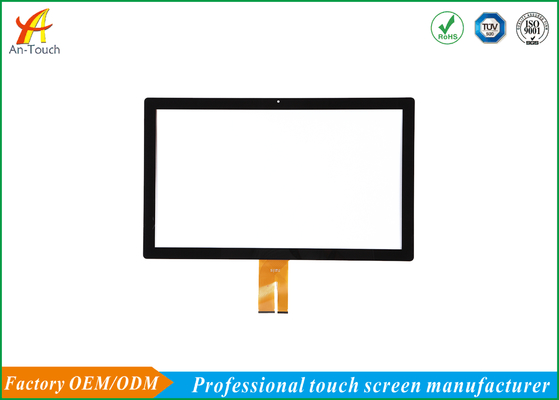

Durable Usb Powered Touch Screen / 27 Inch Waterproof Touchscreen Display
Usb Powered Touch Screen Structure & Operating Principle:
►There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.
►The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.
►When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.
►The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.
Usb Powered Touch Screen details
| Item | Specification |
| Part Number | AC-C1075-27.0 Usb Powered Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 656.02*394.02mm |
| View Area | 598.6*337.14mm |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.1±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Usb Powered Touch Screen :
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
♦any point can withstand more than 50 million times touch
♦long life, low maintenance costs
♦ intelligent automatic calibration, use forinternal / external variety of environments
♦Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
2. How about mass production lead time ?
------ 15 days after sample confirmed
3. shipping?
------,Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year
