Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1075-27.0 |
|
Detail Information |
|||
| Name: | Projected Capacitive Touch Panel | Feature: | High Accuracy |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 656.02*394.02mm |
| Module View Area: | 598.6*337.14mm | IC Controller: | ILITEK 2312 |
| Operating System: | XP Win7、8 Android Linux | Interface Mode: | USB/IIC/RS232 |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description

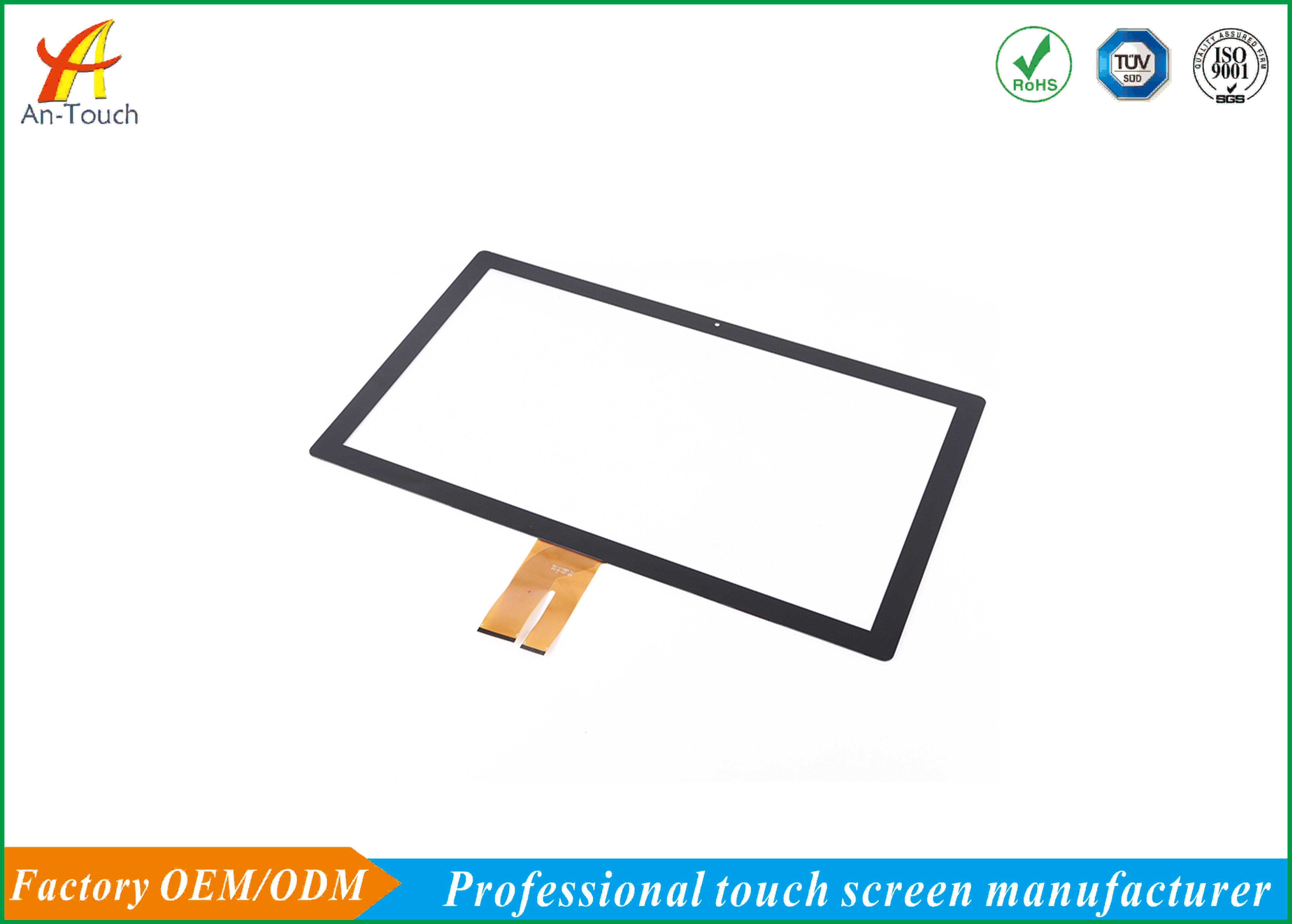

High Accuracy Projected Capacitive Touch Panel Multi Points Touching
Capacitive Touchscreen Display Features:
1) Response speed fast, smooth touch.
2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
3) Precision-touch capacitive screen is using the body's current-sensing.
4) Accuracy up to 99% proficient in writing, no break no drift.
5) Any point can withstand more than 50 million times touch.
6) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.
Advantages of G+G structure:
(1) High transmittance,>83%.
(2) Hard and anti-wear surface.The hardness is 6H.
(3) Excellent corrosion resistance.
(4) Sensitive touch and stable performance.
Product details
| Item | Specification |
| Part Number | AC-C1075-27.0 Projected Capacitive Touch Panel |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 656.02*394.02mm |
| View Area | 598.6*337.14mm |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.1±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
♦response speed fast, smooth touch
♦accuracy up to 99% proficient in writing, no break no drift
♦any point can withstand more than 50 million times touch
♦long life, low maintenance costs
♦ intelligent automatic calibration, use forinternal / external variety of environments
♦Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability
Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
